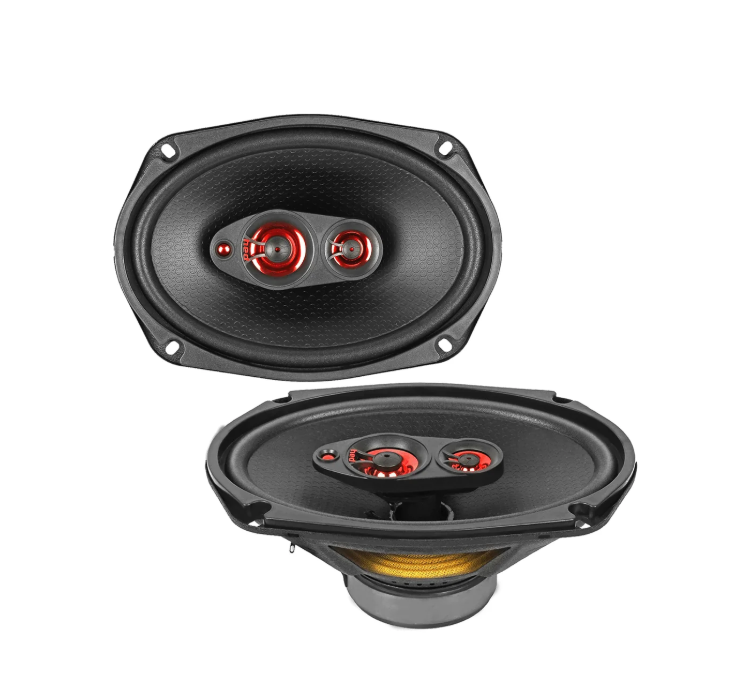

H694 - HED 6"x9” 4-Way Coaxial Full Range Speaker Set

4-Way Coaxial Design for Superior Sound Coverage

The H694 features a 6X9” woofer, 2” midrange, 1” PEI tweeter, and a 0.5” super tweeter, offering a full-spectrum, multi-driver configuration that brings out every nuance of your music. The polypropylene cone ensures precise and accurate bass, while the UV-treated foam surround enhances durability. The dynamically balanced 1” PEI tweeter and 0.5” super tweeter provide high-frequency brilliance, delivering bright, crisp highs for a complete and well-rounded sound profile.

Features:

• 6X9” Woofer, 2” Midrange, 1” PEI Tweeter, & 0.5” Super Tweeter – A 4-way coaxial design offering full-range sound coverage, from deep bass to ultra-high frequencies, providing a complete audio spectrum.
• Responsive Polypropylene Cone – Delivers accurate, punchy bass and smooth midrange, ensuring dynamic, full-range sound that makes your music come alive.
• UV-Treated Foam Surround – Enhances durability, ensuring long-lasting performance and high-quality sound reproduction over time.
• Dynamically Balanced 1” PEI Tweeter & 0.5” Super Tweeter – Delivers brilliant, distortion-free highs and ultra-clear upper frequencies, ensuring top-tier performance for high-frequency sound reproduction.
• Integrated Crossover with Tweeter Protection – Smoothly transitions frequencies and protects the tweeters from distortion at higher volumes, maintaining clarity even at maximum output.
• Strontium Ferrite Woofer Magnet – Provides deep, punchy bass and robust midrange response, creating a rich, warm sound profile.
• Powder-Coated, Rigid Stamped Steel Basket – Reduces unwanted vibrations and distortion, ensuring consistent, high-quality sound in any environment.
• Sold in Pairs – Perfect for upgrading or building a high-performance car audio system with premium coaxial speakers.

Specifications:

• Power: 150W Max / 60W RMS
• Frequency Response: 90Hz-20KHz
• Sensitivity (1W/1M): 90dB
• Nominal Impedance: 4Ω
• Free Air Resonance (FO): 63Hz
• Overall Diameter: 236mm X 162.5mm / "9.29 X 6.40IN (mm)
• Cut-Out Diameter: 220.5mm X 150.5mm / "8.68 X 5.93IN(mm)
• Mounting Depth: 90mm/ 3.54IN
