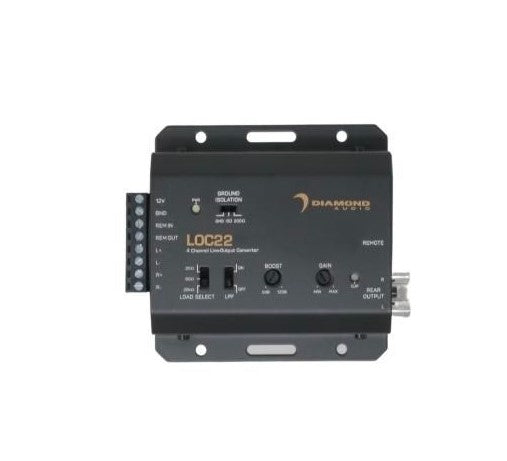

2-Channel (2 IN / 2 OUT) Line-Output Converter - LOC22

LOC SERIES LINE OUTPUT CONVERTERS

Diamond Audio’s line output converters serves as your integration ticket for a great sounding audio system. Not only do these provide tremendous output voltage, they provide you with an assortment of various output controls. The load select feature provides flexible compatibility and prevents unwanted system noise. The LOC series line output converters are available as a 2-channel or 4-channel model.

Features:

• 2-Channel (2 IN / 2 OUT) Line-Output Converter
• Ideal Interface for Adding an Aftermarket Amplifier
• Single Dial,Precision Matched, Stereo & Level Gain Adjustment
• Up to 40 Volts RMS High Level Input Sensitivity
• Up to 9.5 Volts RMS Low-level RCA Output
• Selectable 20Ω / 60Ω / 20KΩ Load Input Impedance
• Selectable GND / ISO / 200Ω Ground Isolation
• Bass Boost: 0-12dB
• Dimensions: 4.53" x 3.86" x 0.94" / 115.1 x 98 x 24 mm
• Removable Quick Connect with Screw Type Terminal
