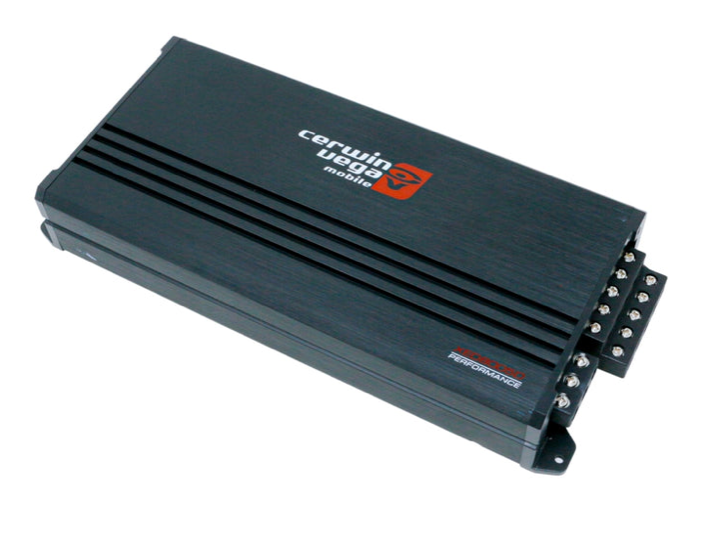

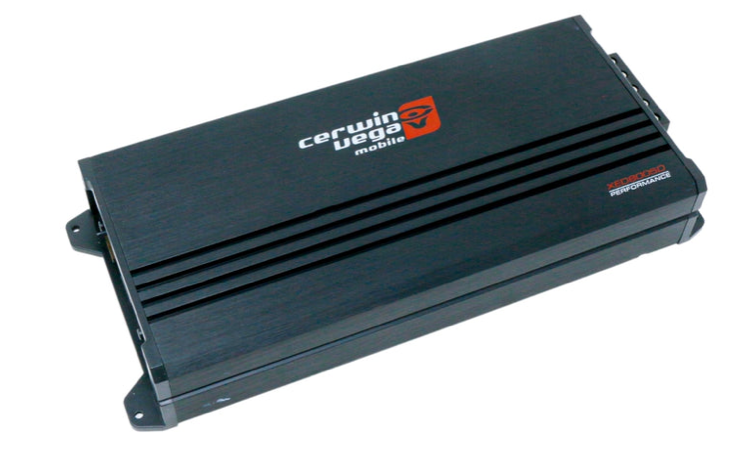

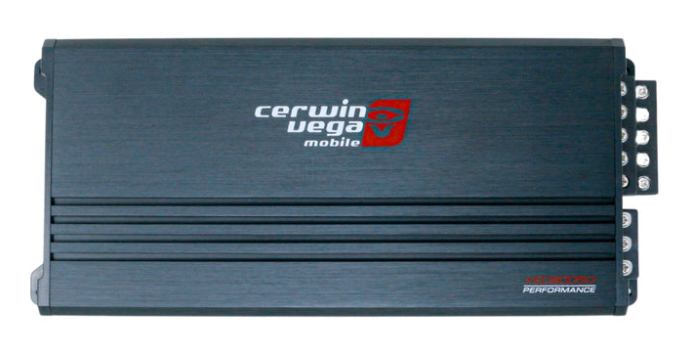

XED8005D - XED Series 660W RMS 5 Channel Amplifier

XED8005D - 5 Channel Class-D Amplifier

Description:

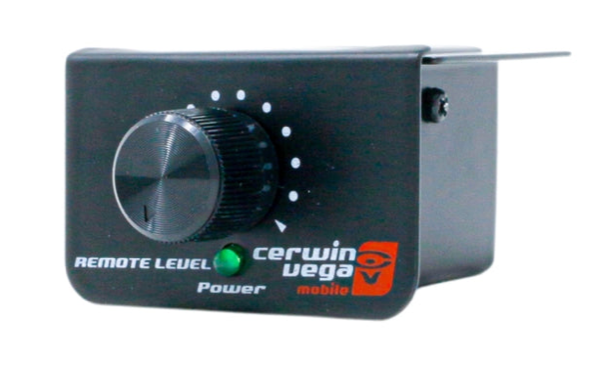

Latest High-Efficiency Class D Topology. Compact Size with Ambient backlit logo. RCA “Pass Thru” output for easy system expansion. Fully Variable Crossovers (12dB per octave). Handles HI and LO level input to 12V. 2 Ω Stable Stereo and 4Ω Mono (CH3/4) for 3 Ch mode. Proprietary Vega Bass Boost EQ Up To 12dB.

Features:

• 1000W MAX Power
• 5 Channel Amplifier
• 90W x 4 + 1 x 300W @ 2Ω RMS
• 65W X 4 + 1 x 200W @ 4Ω RMS
• Crossover:  35Hz~250Hz (LP/HP)
• Frequency Response: 10Hz~30KHz+10Hz~250Hz
• Dimensions: 10.3” x 4.7” x 1.8” (260mm x 120mm x 46.5mm)
