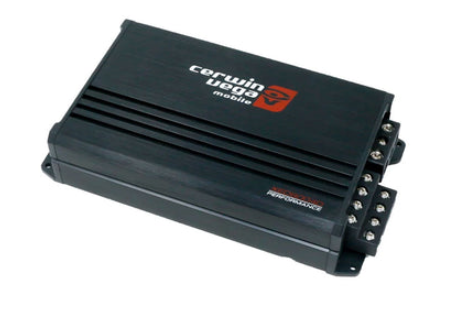

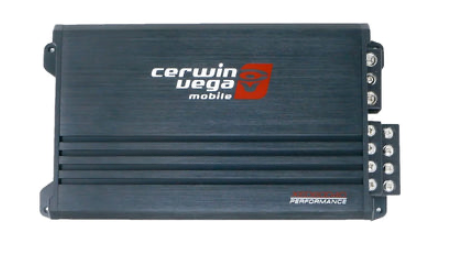

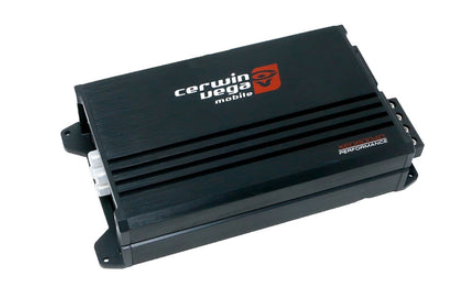

XED6004D - XED Series 480W RMS 4 Channel Amplifier

XED6004D - XED Series 480W 4 Channel Amplifier

Description:

Latest High-Efficiency Class D Topology. Compact Size with Ambient backlit logo. RCA “Pass Thru” output for easy system expansion. Fully Variable Crossovers (12dB per octave). Handles HI and LO level input to 12V. 2 Ω Stable Stereo and 4Ω Mono (CH3/4) for 3 Ch mode. Proprietary Vega Bass Boost EQ Up To 12dB.

Features:

• 600W MAX Power
• 4 Channel Amplifier
• 120W x 4 @ 2Ω RMS
• 80W X 4 @ 4Ω RMS
• 220W x 2 Bridged
• Crossover: 35Hz~250Hz (LP/HP)
• Frequency Response: 10Hz~30KHz
• Dimensions : 7.1” x 4.7” x 1.8” (180.34mm x 119.38mm x 45.72mm)
