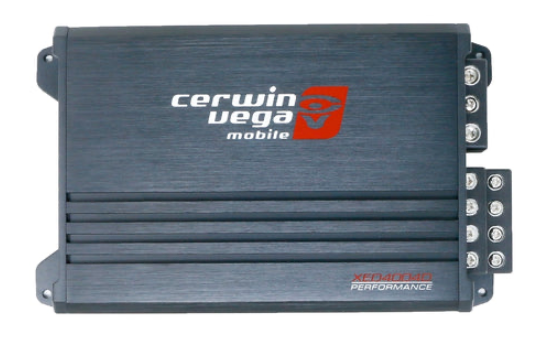

XED4004D - XED Series 360W RMS 4 Channel Amplifier

XED4004D - 4 Channel Amplifier 400W MAX Power

Description:

Latest High-Efficiency Class D Topology. Compact Size with Ambient backlit logo. RCA “Pass Thru” output for easy system expansion. Fully Variable Crossovers (12dB per octave). Handles HI and LO level input to 12V. 2 Ω Stable Stereo and 4Ω Mono (CH3/4) for 3 Ch mode. Proprietary Vega Bass Boost EQ Up To 12dB.

Features:

• 400W MAX Power
• 4 Channel Amplifier
• 90W x 4 @ 2Ω RMS
• 60W X 4 @ 4Ω RMS
• 170W x 2 Bridged
• Crossover: 35Hz~250Hz (LP/HP)
• Frequency Response: 10Hz~30KHz
• Dimensions: 6.3”x 4.7” x 1.8” ( 160.02mm x 119.38mm x 45.72mm )
