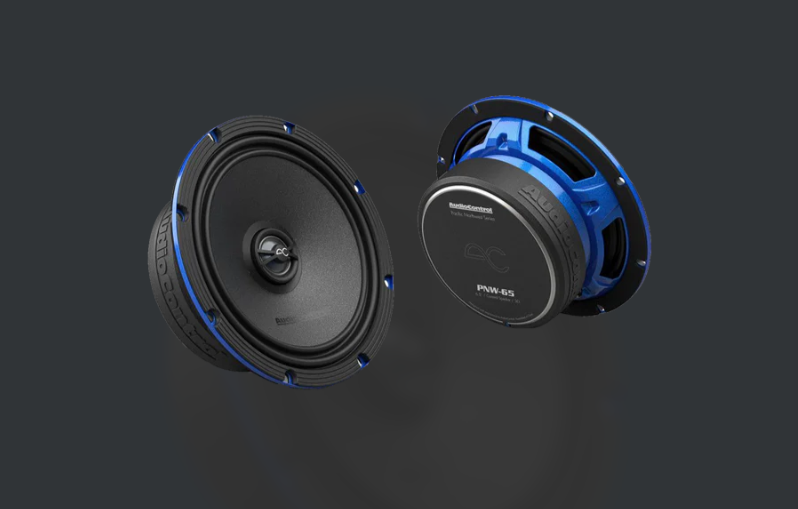

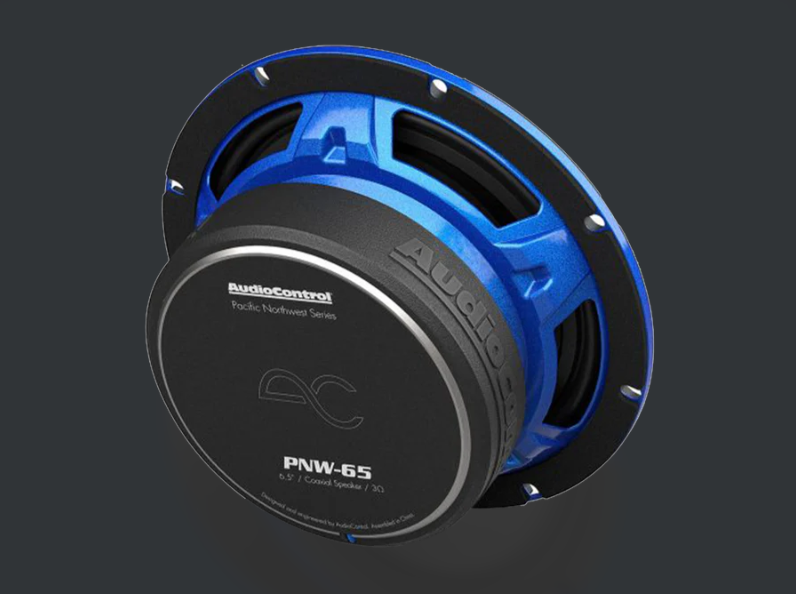

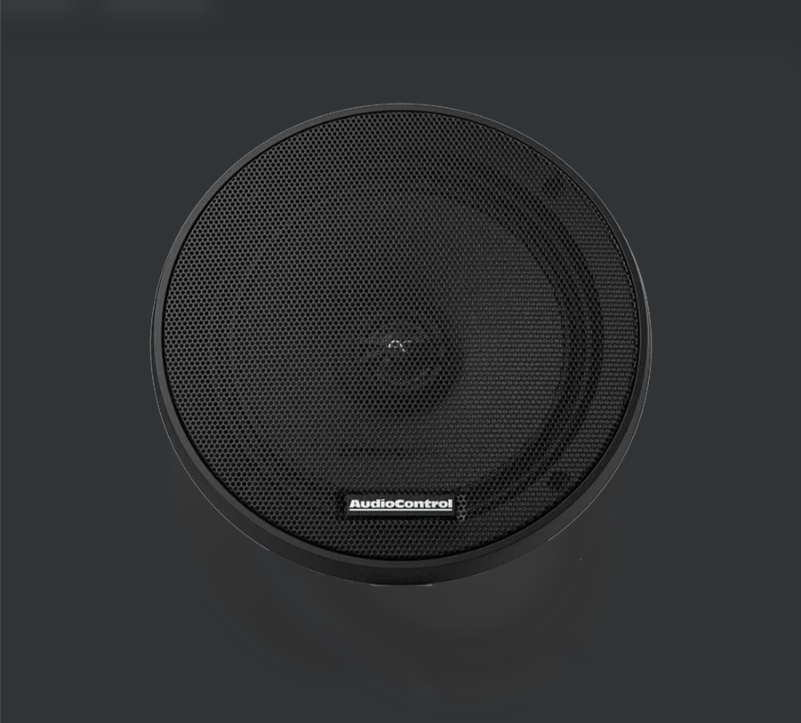

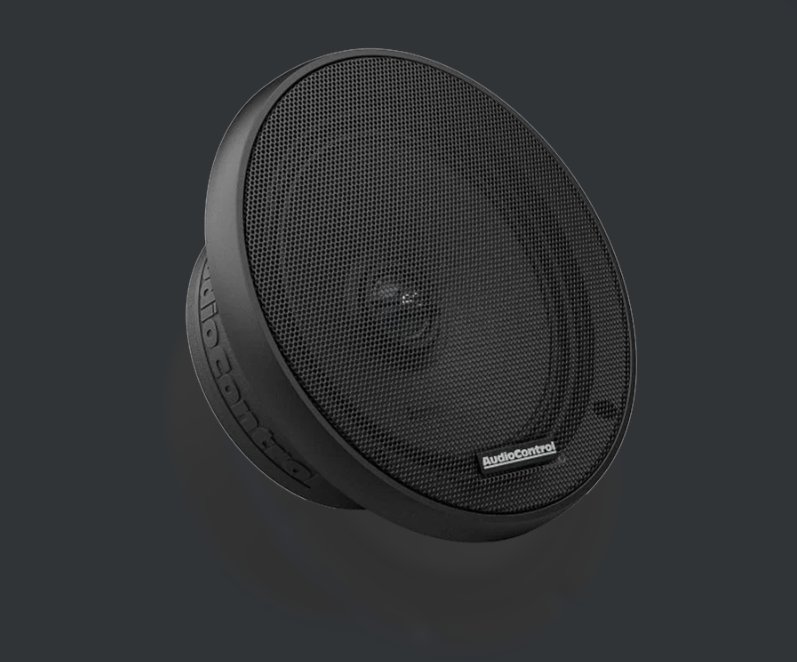

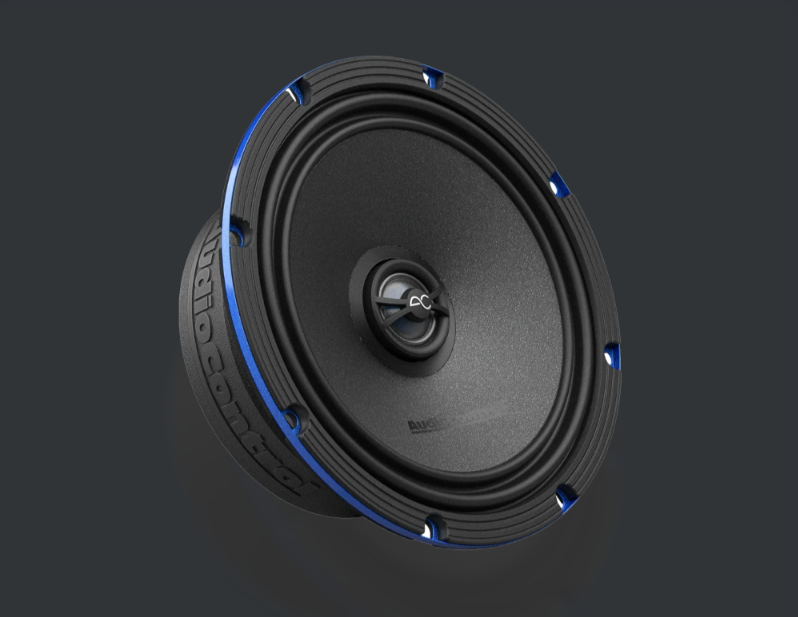

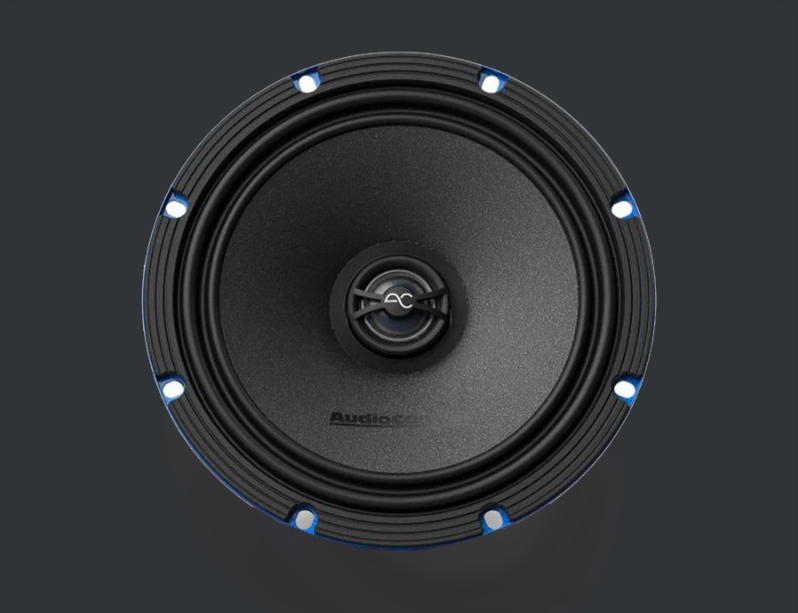

PNW Series PNW-65 6.5" Coaxial Speakers, 75W RMS, 3 Ohms (Pair)

AudioControl has over 45 years of experience engineering top-quality audio components. Buckle up and get ready to embark on a wild new auditory adventure with AudioControl’s PNW speakers! Experience the vibrant landscapes of the Pacific Northwest through your music when you combine AudioControl’s legendary amplifiers with the new PNW series of speakers. Trust us, you’ve never heard sound quite like this before. The PNW line features an edge-enhanced steel frame for ultimate structural strength, a black anodized voice coil former for superior heat dissipation, and a linear double-roll surround for precise cone movement. Plus, the rigid poly mica-coated cone optimizes sound reproduction.

Features:

• Edge-enhanced steel frame for added structural strength
• Black anodized voice coil former for superior heat dissipation
• Linear double-roll surround for precision cone movement
• Complex FEA-designed high-efficiency motor
• Rigid poly mica-coated cone for optimized sound reproduction
• Rear dampened hybrid silk dome tweeter for extended frequency response
• Concentric point source design for a seamless transition from midrange to tweeter
• Sonic diffuser and radiant collar for better off-axis frequency response
• High-quality mounting hardware included

Specifications:

• Crossover Type                                    Butterworth
• Power                                                         75W RMS / 100W Max
• DC Resistance (Re).                           2.3 ohms
• Filter Type                                               HP
• Frequency Response                       60-20k Hz
• XO Frequency                                      5250 Hz
• Slope (Octave)                                     -6 dB
• Tweeter Voice Coil Diameter         20 mm
• Midrange Voice Coil Diameter      35 mm

Dimensions:

• Overall Diameter (w/o Grille): 6.5 in / 166 mm
• Cut Out Diameter: 5.59 in / 142 mm
• Mounting Depth: 2.36 in / 60 mm
• Height (w/o Grille): 0.20 in / 5.2 mm
• Height (w/ Grille): 0.86 in / 22 mm
• Motor Diameter (w/ Cover): 4.6 in / 117 mm
• Grille Overall Diameter: 7.05 in / 179 mm
