AUDIO CONTROL

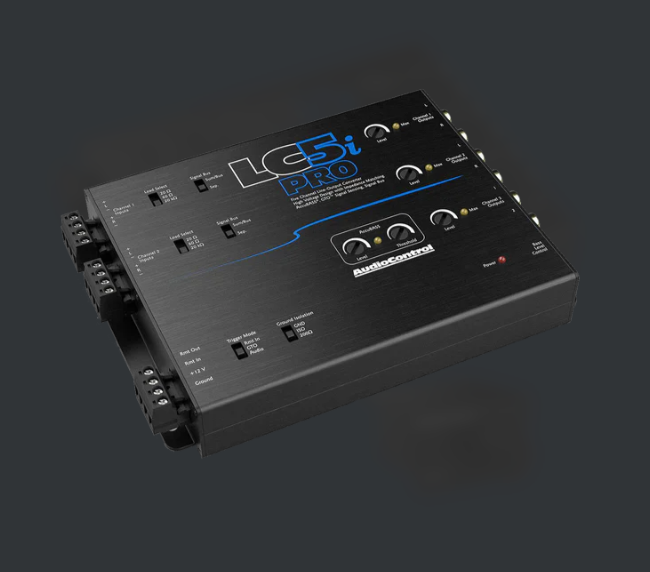

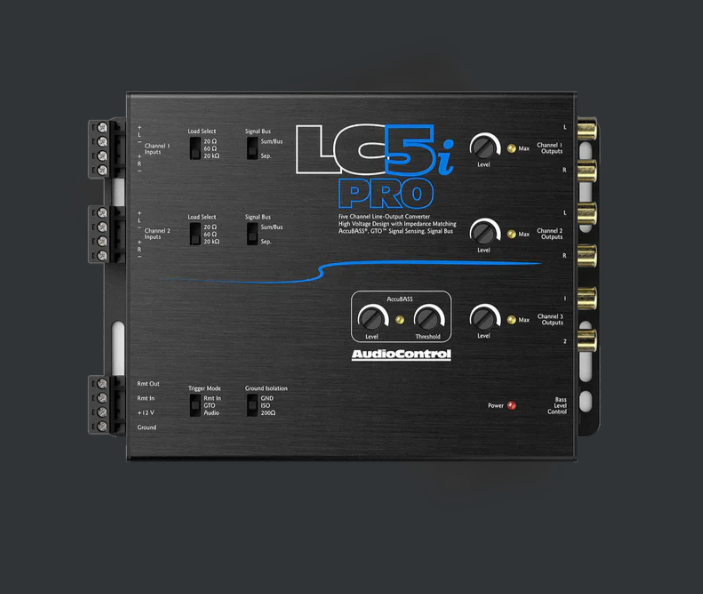

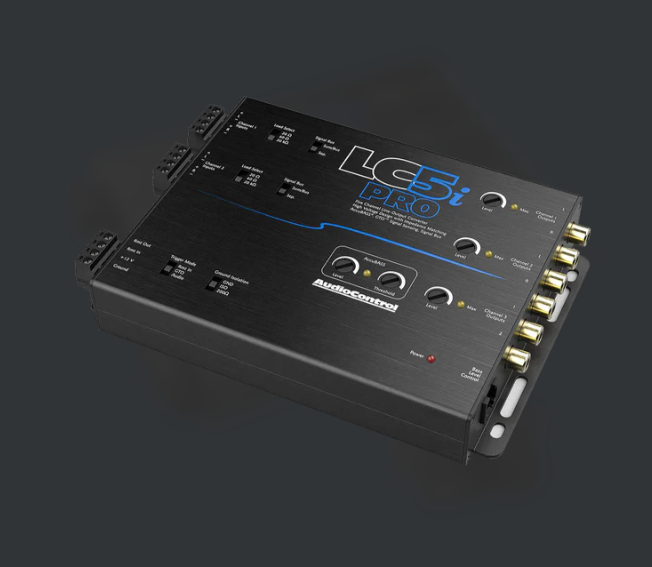

LC5iPRO 5-Channel Line Output Converter w/AccuBASS
LC5iPRO 5-Channel Line Output Converter w/AccuBASS
Regular price
$259.99 USD
Regular price
Sale price
$259.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
AudioControl brings you our most advanced line of LOCs yet. OEM integration has never been easier with the host of intelligent built-in features like LMC™ (Load Matching Circuit), allowing even the most finicky factory sound systems to no longer be an obstacle to great sound. The Pro series ensures that you will start with the clean, powerful signal you need to take your system from sounding good to sounding great.
FEATURES
- Four channels of active speaker-level inputs (up to 40V input handling)
- Fixed and variable outputs with discrete-level controls
- AccuBASS® processing for correction of bass roll-off
- Load Selection Switch
- GTOTM Signal Sensing
- Ground Isolation Switch

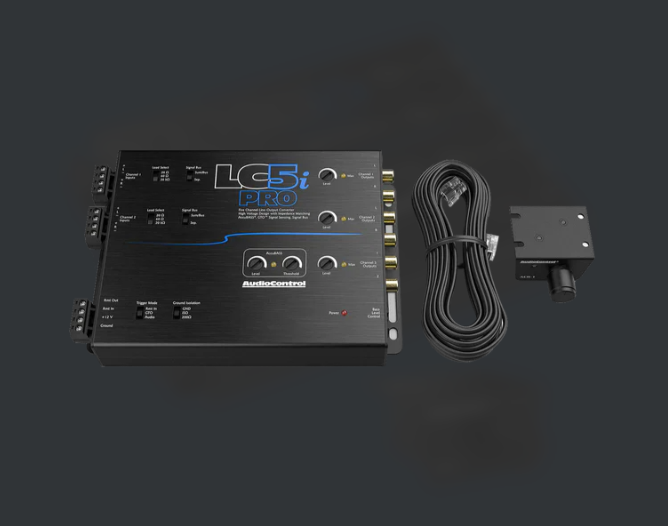

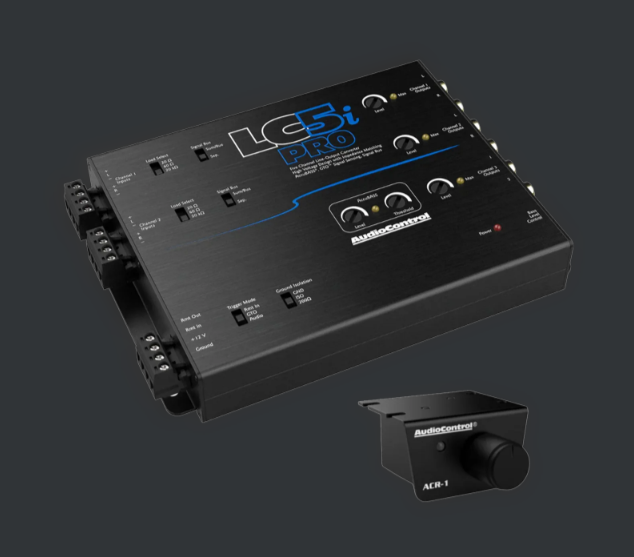

- ACR-1 dash remote included
- Compact design
SPECIFICATIONS
INPUTS
- Speaker Level Input: 1 (4 channels)
- Maximum Speaker Level Input: 40 Vrms / 400 W (20kΩ setting)
- Input Impedance (selectable): 20Ω, 60Ω, 20kΩ
OUTPUTS
- Preamp Outputs: 5 (4 channels main, 1 channels bass)
- Maximum Output Level: 9.5Vrms/13V peak
- Output Gain: +/- 15 dB
- Output Impedance: 150Ω
PERFORMANCE
- Total Harmonic Distortion: 0.01%
- Signal to Noise: >124 dB
- Frequency Response: 20 Hz – 20 kHz
CONTROL
- Remote In / GTO™ Signal Sense / Audio Sense
- 12VDC Remote Out (always active when unit is on)
GENERAL
- Current Draw: 330 mA
- Recommended Fuse Rating: 2 A
